C# 获取Word中的指定图片坐标位置（附VB.NET）

以下内容通过C#以及VB.NET代码示例来介绍获取Word文档中指定图片的坐标位置。

工具/材料

.Net Framework 4.8

Visual Studio 2013

Free Spire.Doc for .NET 7.11

Word测试文档：.docx 2013

操作方法

【步骤01】

指定文件路径，本次测试代码路径为项目文件夹路径。即在Visual Studio项目文件下存入用于测试的Word文档，如：C:\Users\Administrator\Documents\Visual Studio 2013\Projects\ExtractTextandImage_Doc\GetCoordinatesOfImg\bin\Debug\test.docx。文件路径也可自定义为其他路径。

【步骤02】

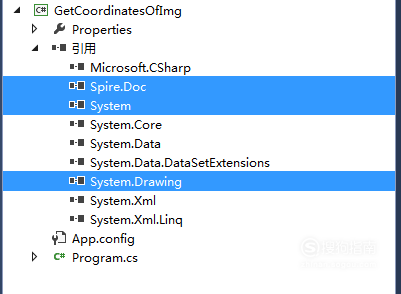

在“解决方案资源管理器”中引入必要程序集文件，如下图：

【步骤03】

在程序中键入如下C#代码：
using Spire.Doc;
using Spire.Doc.Documents;
using Spire.Doc.Fields;
using System;

namespace GetCoordinatesOfImg
{
class Program
{
static void Main(string[] args)
{
//加载Word测试文档
Document doc = new Document();
doc.LoadFromFile("test.docx");

//遍历section
for (int a = doc.Sections.Count - 1; a >= 0; a--)
{
Section section = doc.Sections[a];

//遍历paragraph段落
for (int j = section.Paragraphs.Count - 1; j >= 0; j--)
{
Paragraph paragraph = section.Paragraphs[j];

//遍历段落中的对象
for (int i = 0; i < paragraph.ChildObjects.Count; i++)
{
DocumentObject docobj = paragraph.ChildObjects[i];

//判断对象是否为图片
if (docobj.DocumentObjectType == DocumentObjectType.Picture)
{
DocPicture picture = docobj as DocPicture;

if (picture.Title.Equals("图片4"))//定位标题为“图片4”的图片
{
//获取图片坐标位置
float x = picture.HorizontalPosition;
float y = picture.VerticalPosition;
Console.WriteLine("坐标位置为：\n X=" + x + "\n Y=" + y);
Console.ReadLine();
}
}
}
}
}
}
}
}

【步骤04】

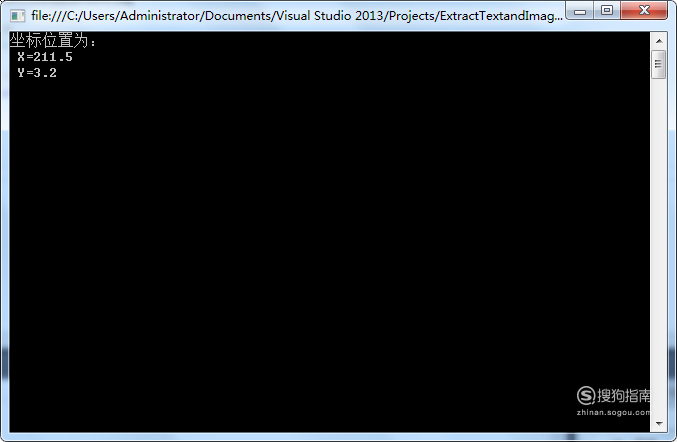

完成代码后，执行程序，输出图片坐标获取结果，如下图：

【步骤05】

附VB.NET代码：
Imports Spire.Doc
Imports Spire.Doc.Documents
Imports Spire.Doc.Fields

Namespace GetCoordinatesOfImg
Class Program
Private Shared Sub Main(args As String())
'加载Word测试文档
Dim doc As New Document()
doc.LoadFromFile("test.docx")

'遍历section
For a As Integer = doc.Sections.Count - 1 To 0 Step -1
Dim section As Section = doc.Sections(a)

'遍历paragraph段落
For j As Integer = section.Paragraphs.Count - 1 To 0 Step -1
Dim paragraph As Paragraph = section.Paragraphs(j)

'遍历段落中的对象
For i As Integer = 0 To paragraph.ChildObjects.Count - 1
Dim docobj As DocumentObject = paragraph.ChildObjects(i)

'判断对象是否为图片
If docobj.DocumentObjectType = DocumentObjectType.Picture Then
Dim picture As DocPicture = TryCast(docobj, DocPicture)

If picture.Title.Equals("图片4") Then
'定位标题为“图片4”的图片
'获取图片坐标位置
Dim x As Single = picture.HorizontalPosition
Dim y As Single = picture.VerticalPosition
Console.WriteLine("坐标位置为：" & vbLf & " X=" + x + vbLf & " Y=" + y)
Console.ReadLine()
End If
End If
Next
Next
Next
End Sub
End Class
End Namespace
